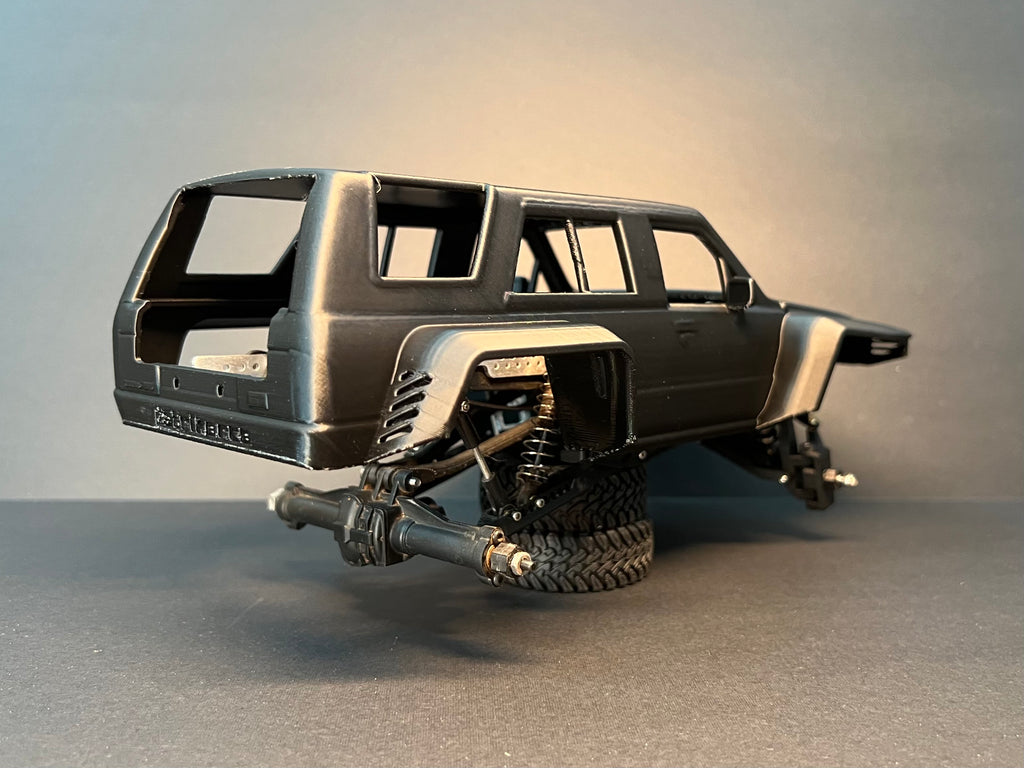

MicroRunner T Builder's Kit

Introducing the MicroRunner T from Patrik’s RCs! This is a new model for the MicroRunner lineup, delivering the same performance and durability that MicroRunners are known for with a refreshed look. This chassis kit is compatible with standard SCX24 and AX24 parts and hardware, as well as limited TRX4M parts. In order to maintain a scale look and the best of performance, the body is closer to 1/20th scale.

Kits do not include shocks, axles, sway bars, electronics, wheels, tires, drivetrain, etc. PLEASE read the description and follow the links for more information. As always, send me a message if anything is unclear!

Assembly Video: Available soon
Detailed parts recommendations: https://docs.google.com/document/d/1x1vFSbOXOrFMNc1QeKIhaRSj8kBS2g9OsloM1fl2VTw/edit?usp=sharing

Key Features:

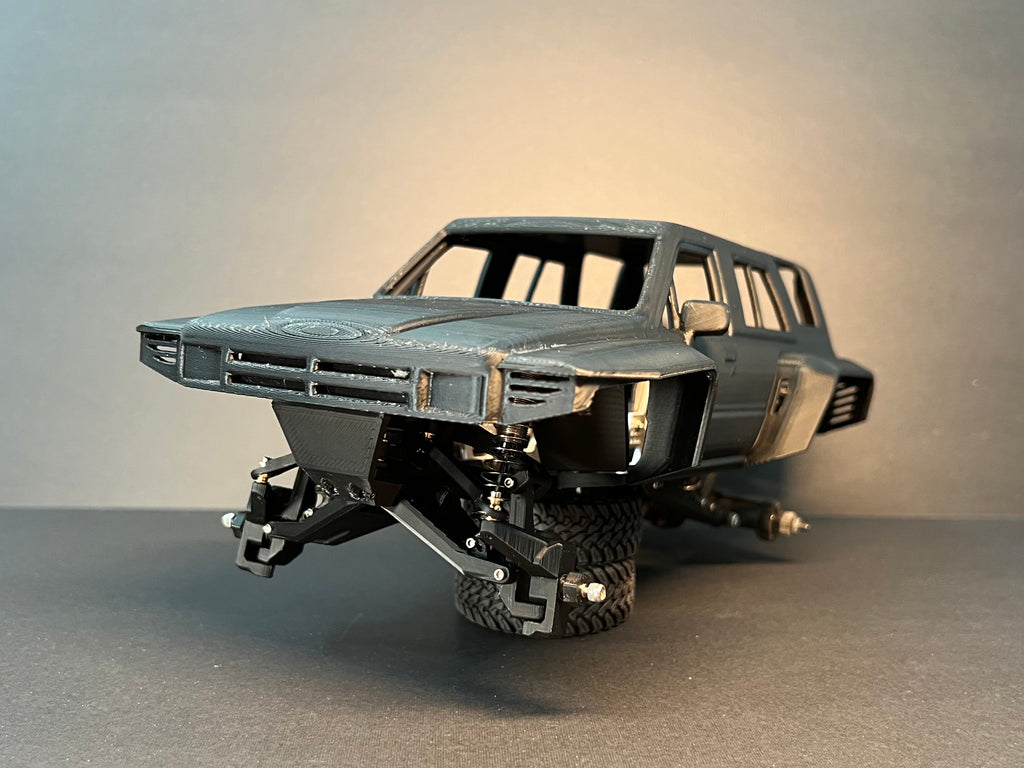

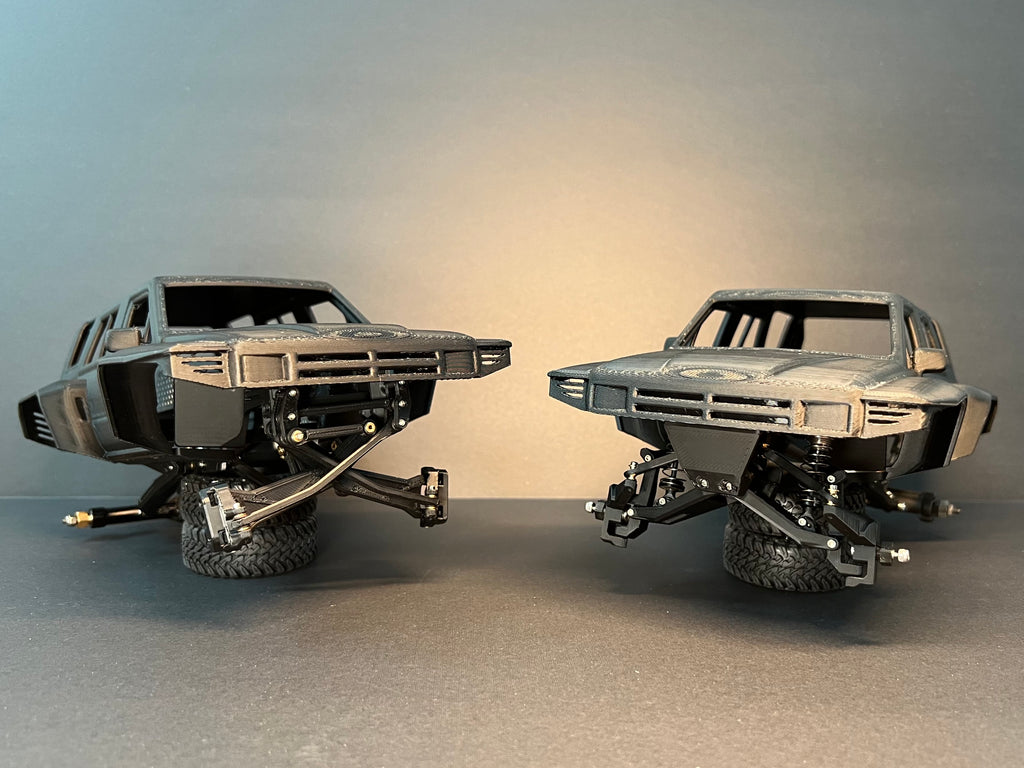

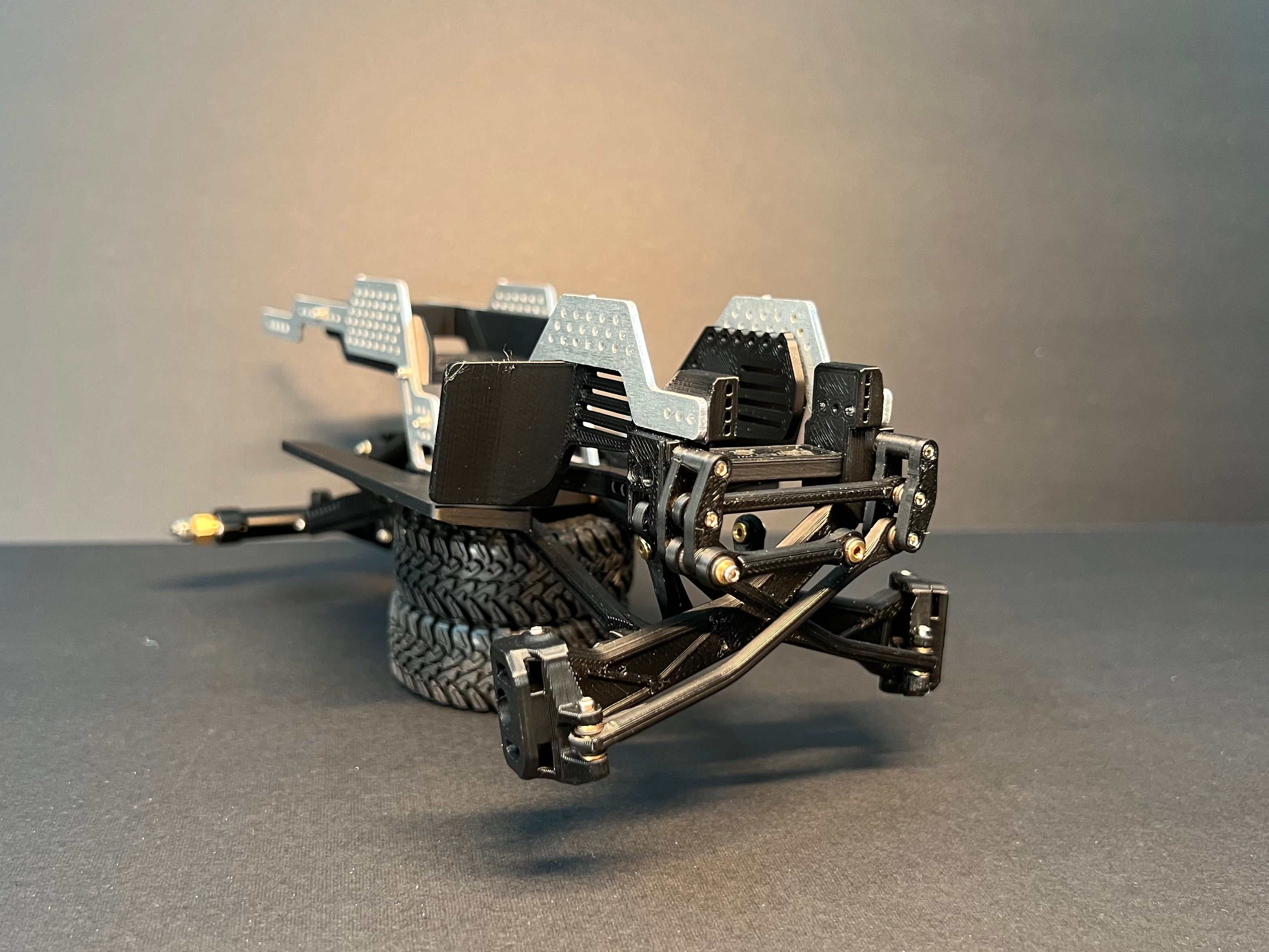

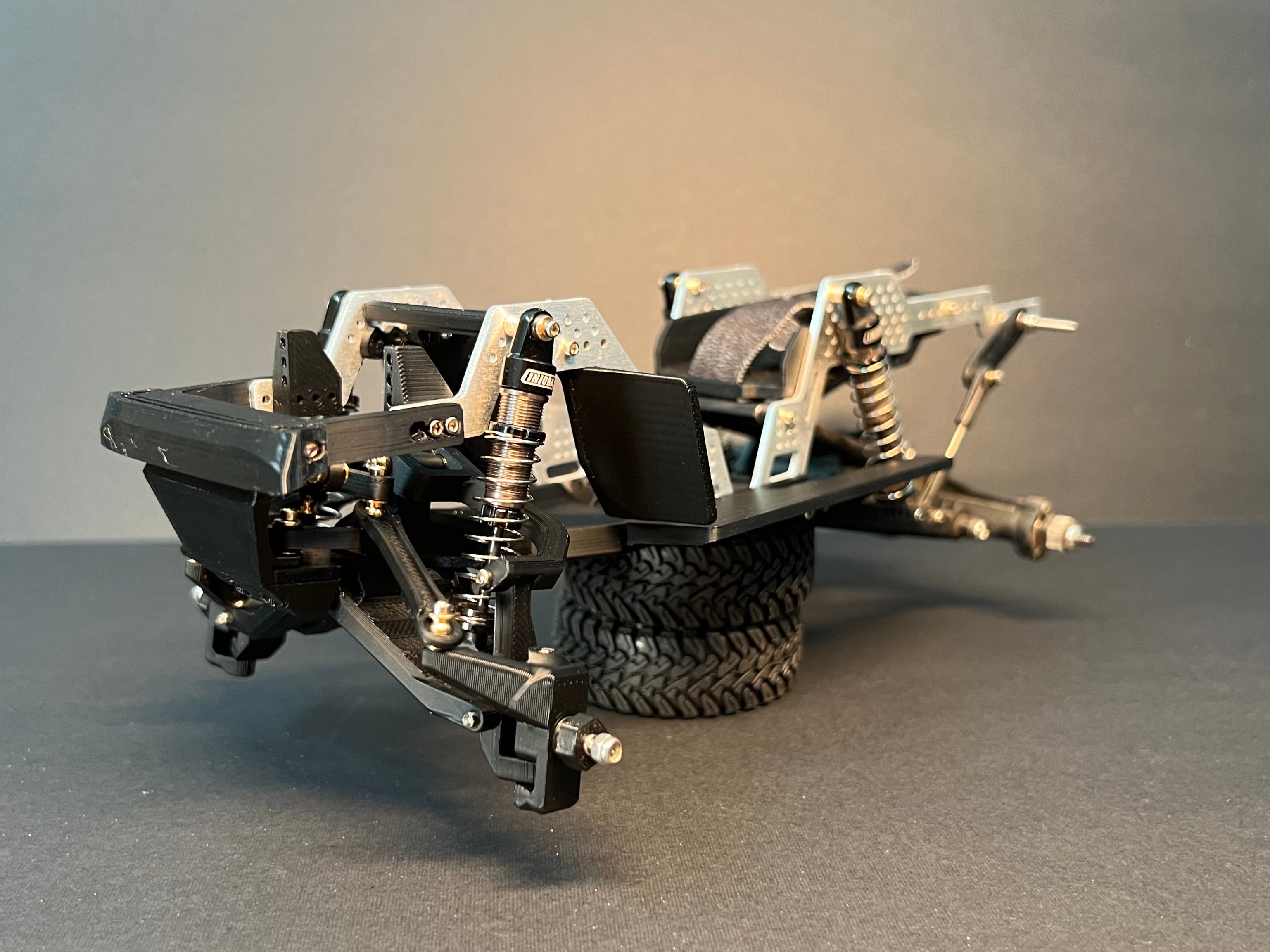

-Independent Front Suspension (IFS) is the centerpiece of this chassis, with a steering rack and sway bar compatibility. Optionally, you can choose the Twin I-Beam front suspension for a different look and driving feel!

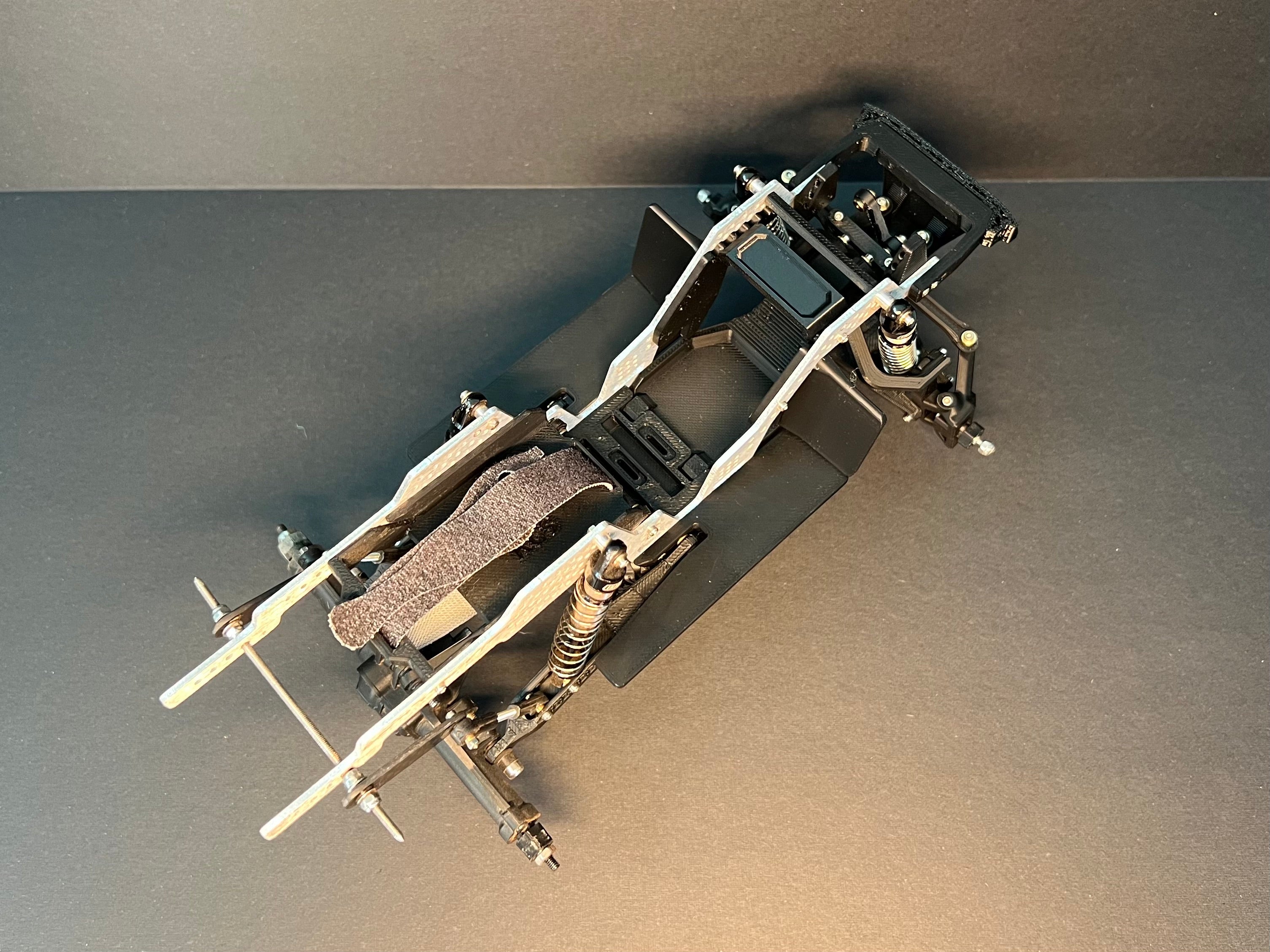

-NEW Battery tray with Velcro strap for improved center of gravity and more versatility

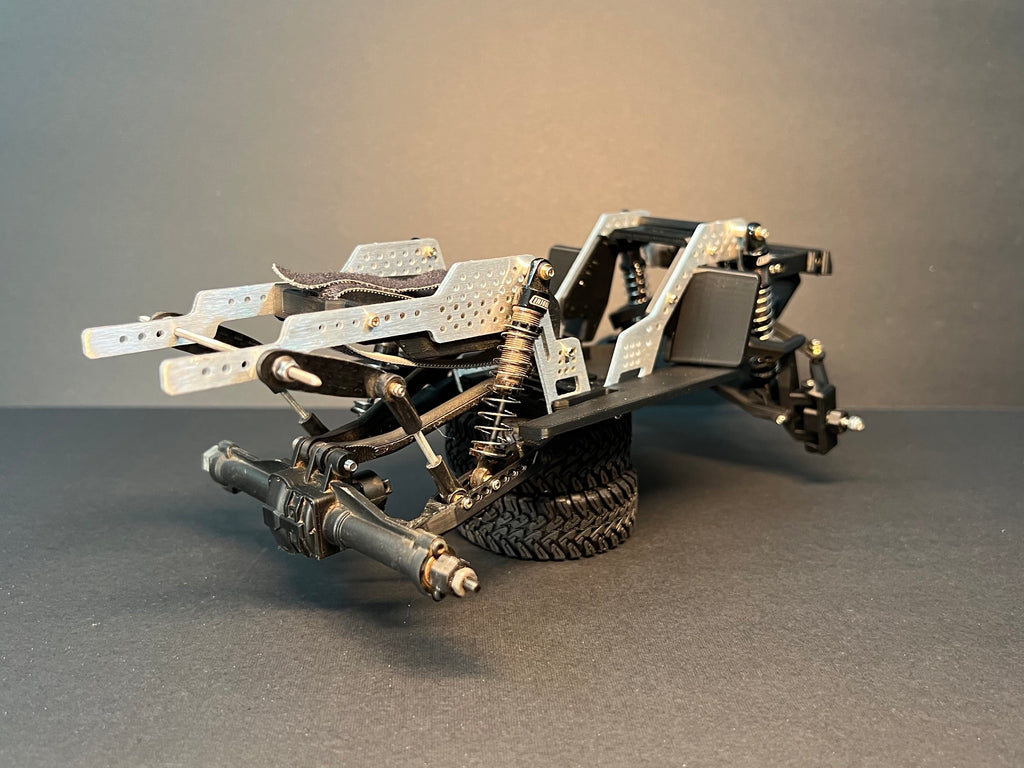

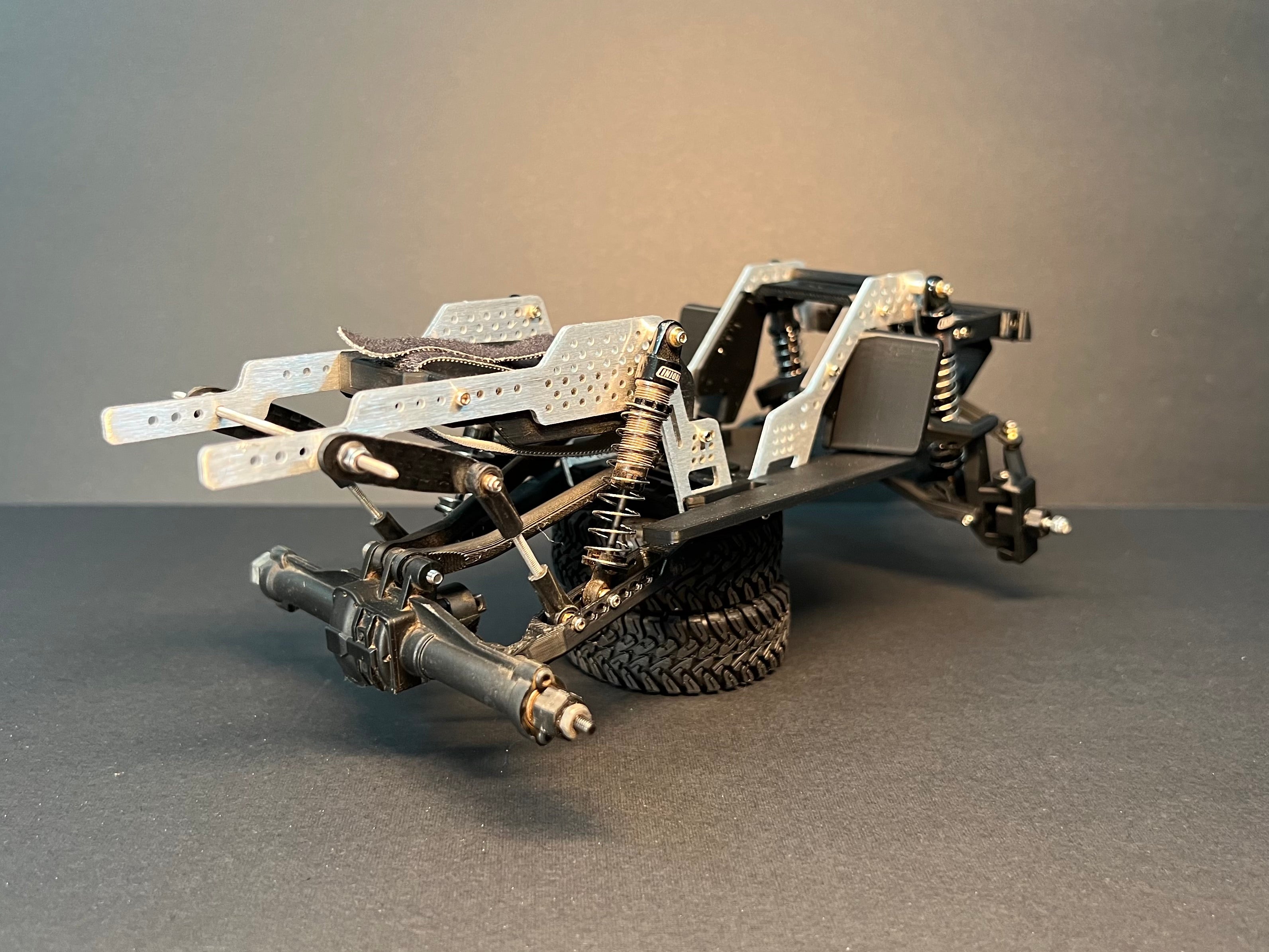

-Aluminum chassis specifically designed for a desert racing setup, with altered link geometry, long travel shock mounts, and sway bar mounts.

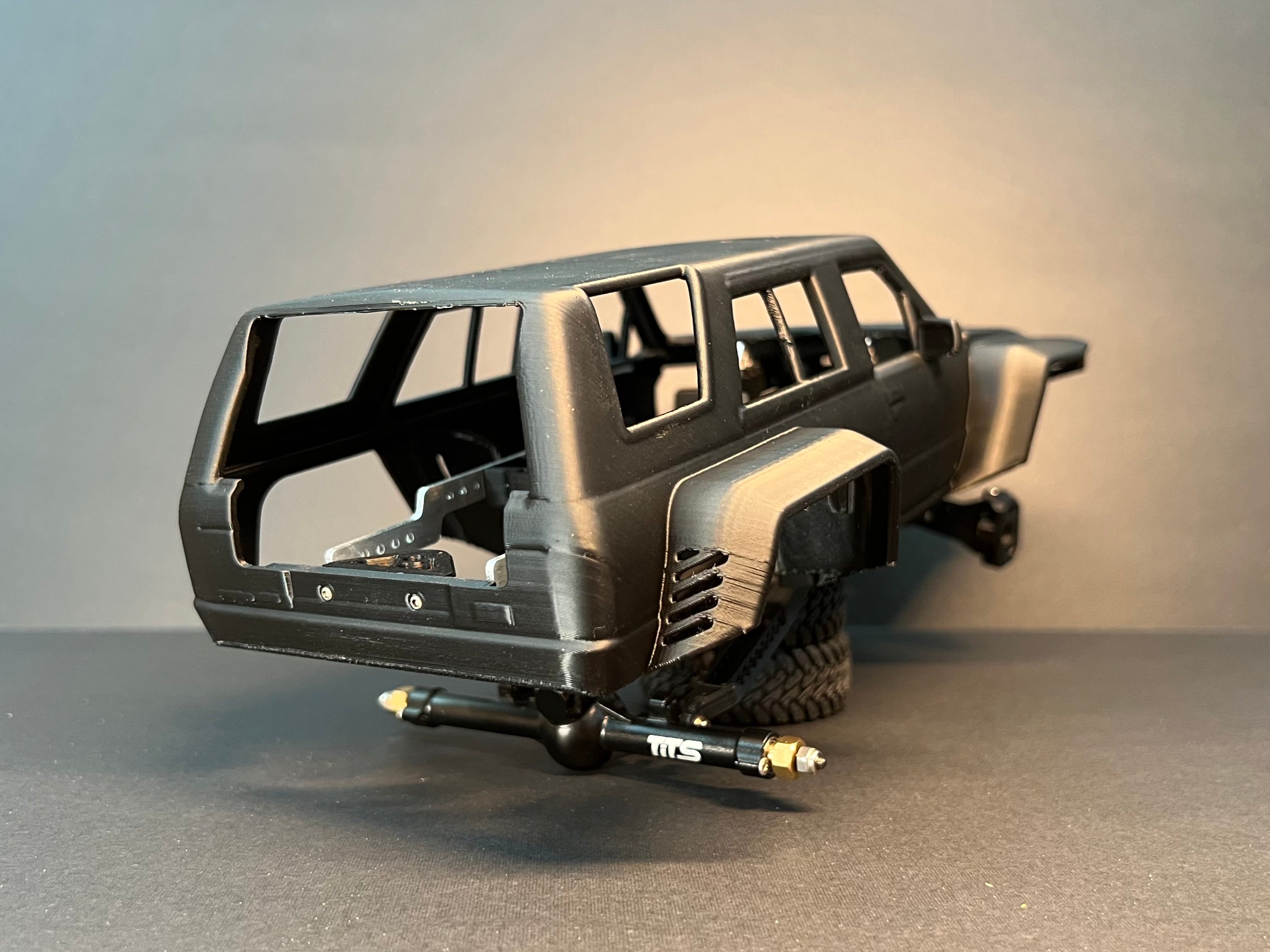

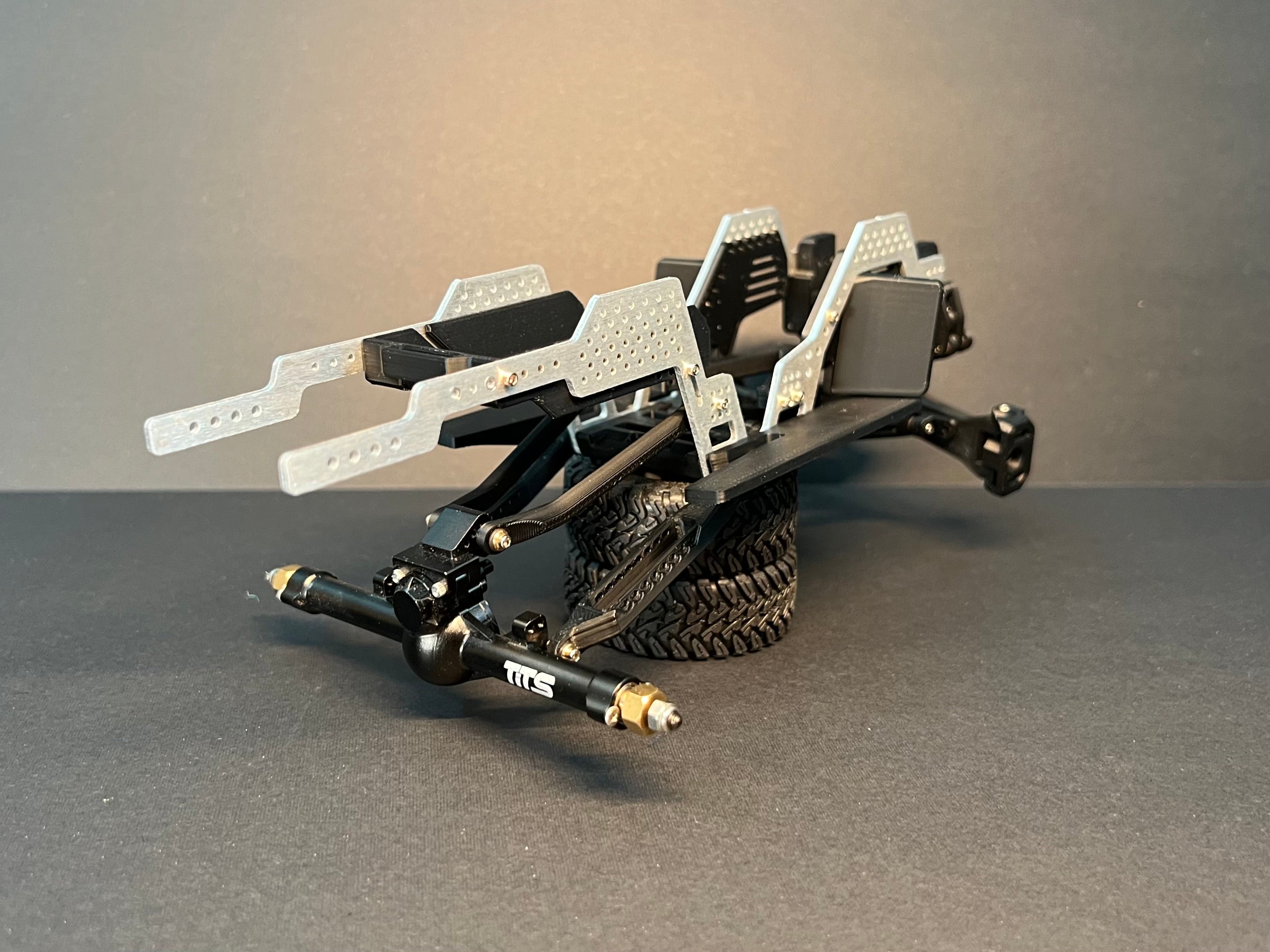

-Rear trailing arms and bent upper links for lower battery storage and center of gravity
-Tire carrier for 2 spare tires (up to 57mm, uses included m2.5 screw to lock tires in place)
-6 separate magnet mounts for the body ensuring it stays on during bashing!

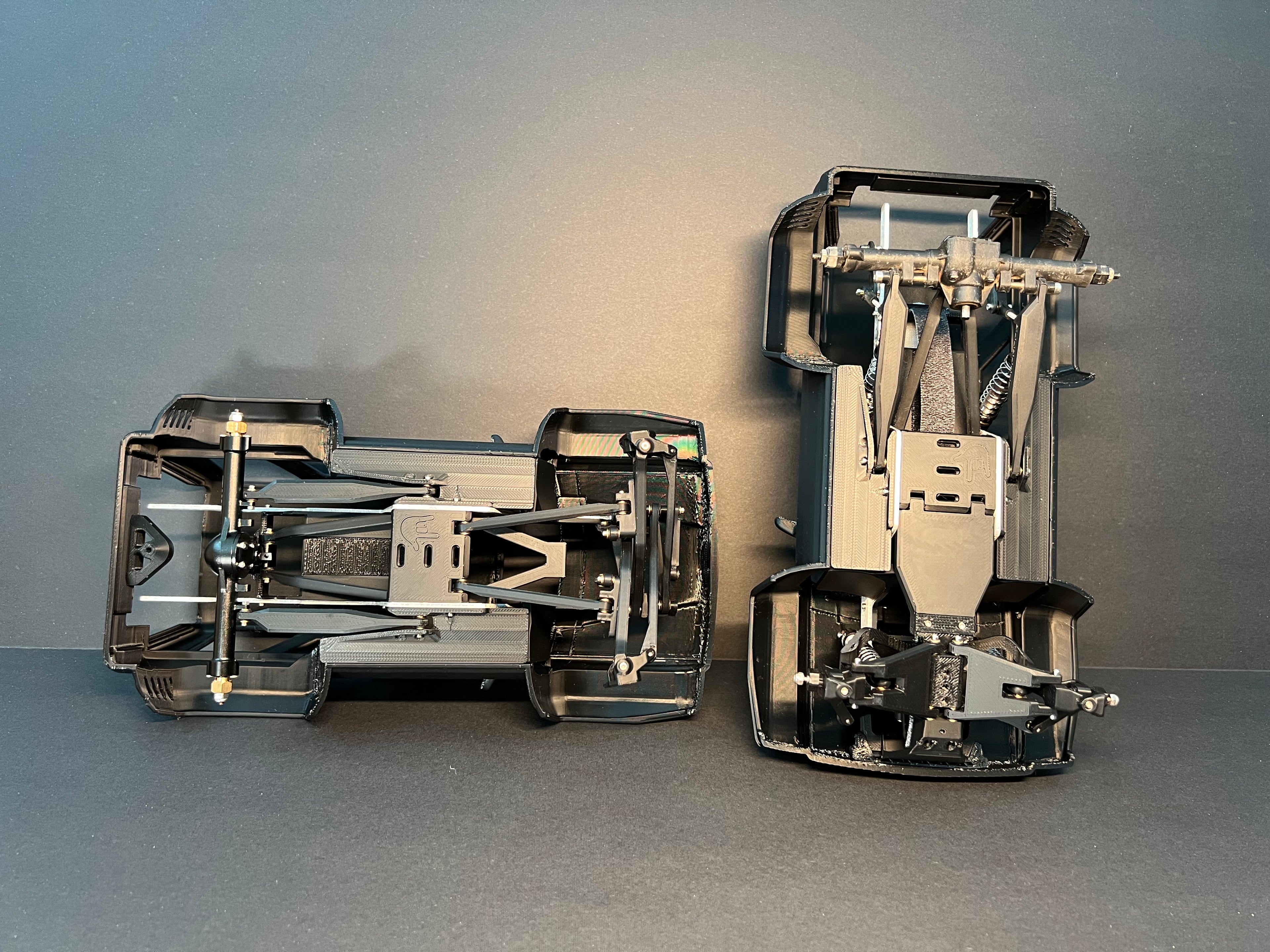

-Sealed underside and front inner fenders keep the majority of rocks and dust away from your electronics

Included in Builders Kit:
-Independent front suspension OR independent beam suspension
-Aluminum chassis rails

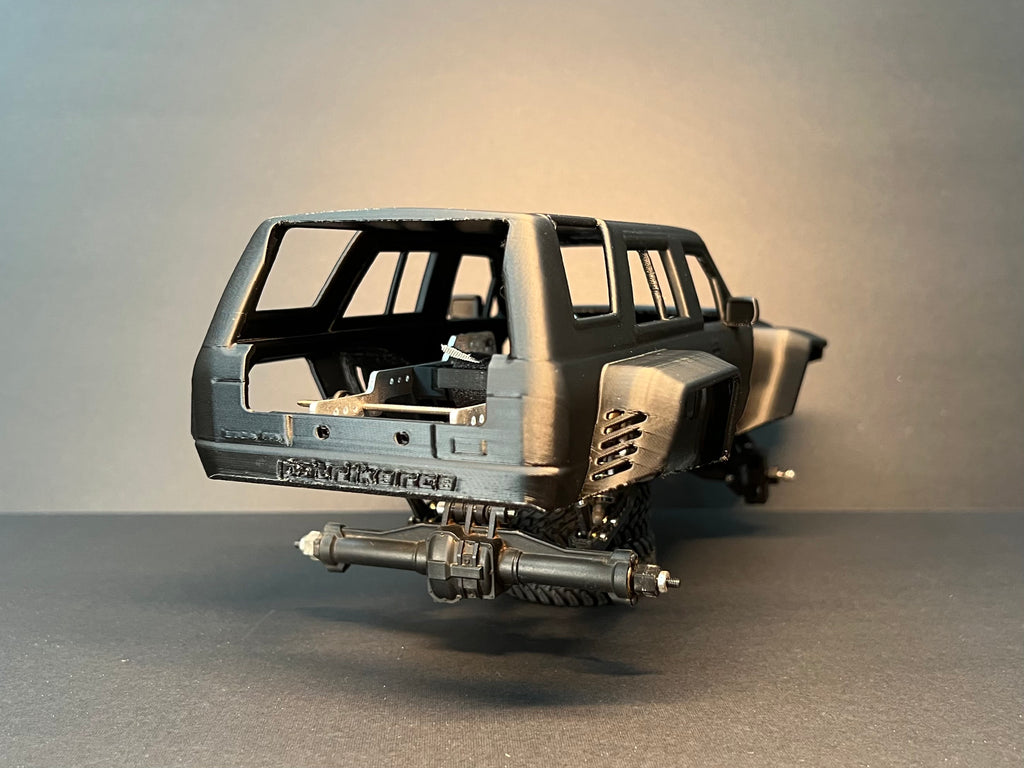

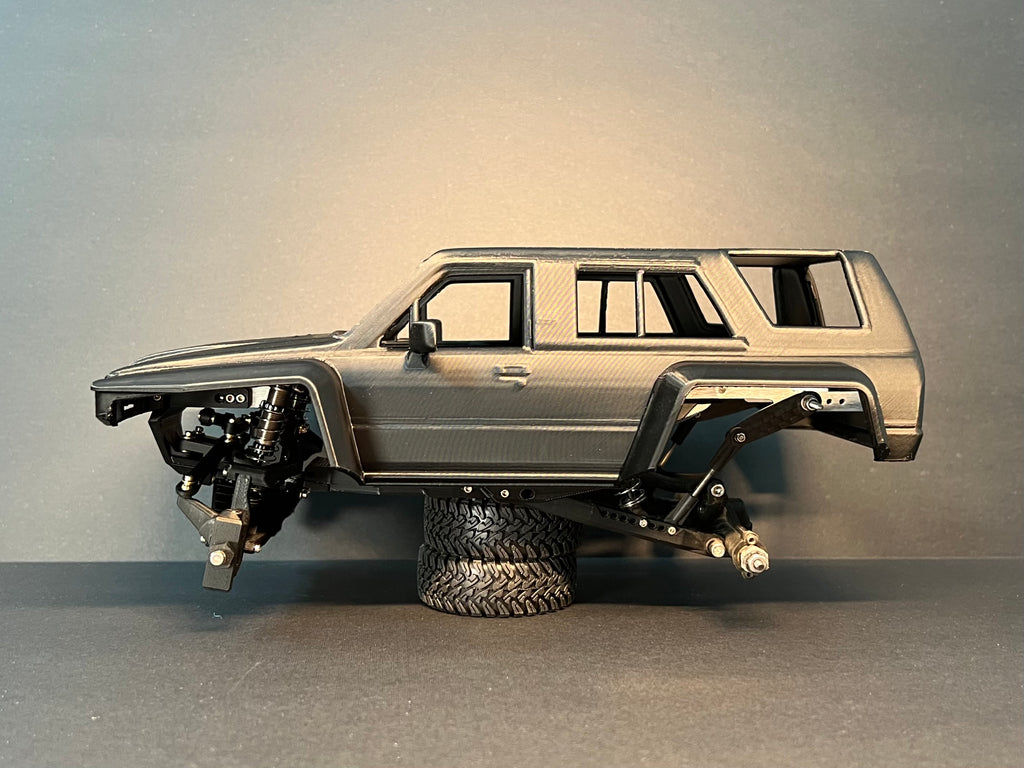

-Body
-Mag mounts for body
-Battery tray with Velcro strap
-Spare tire carrier
-Rear trailing arms and upper links (for both SCX24 and TRX4M axle)
-Skidplates (for both SCX24 and TRX4M axle)
-Floorboards and front inner fenders
-Bearings, and Hardware for complete assembly of body, chassis kit, and IFS

Included in PRO KIT:
-Everything included with standard MicroRunner Kit
-NEW Turbine 1.0 Wheels with hardware
-Paddle tires
-Inserts (please specify which size in your order comment or reach out to me!)
-Interior
-12, 16, and 17mm motor mounts

Required to complete:

-Magnets; I recommend using 12x round 8mm x 2mm neodymium magnets. I attach mine using 3m double sided tape but you can also use a flexible glue.
-SCX24 Front axle stubs; This is the only necessary modification to build this kit, the cup has to be shaved off of a stock front axle stub to fit the IFS
-Sway Bars; I recommend the sway bars made by SWD_RC on Instagram and TikTok. He is amazing to work with and knows which sway bars fit this chassis kit. If you do not have social media please let me know and I will put you in touch with him.
-Wheels: Zero offset wheels will be best for this chassis kit, that will ensure the least amount of trimming and no interference with the IFS. (I sell a set of 6, they are called the “Desert Wheel” also on my Etsy)
-Tires; I recommend 52-56mm tires for a scale look and the least body trimming. This body will clear up to 57mm tires with no modification necessary.
-Electronics (ESC, Receiver, Battery) I highly recommend a receiver with a gyro, this will make driving the MicroRunner much easier.
-Motor; I recommend a sealed brushless motor, see youtube video for more information
-Servo; Fits Rampcrab 2.6kg and larger brushless servos like the Injora 11kg
-Metal transmission and driveshaft
-Rear axle; I recommend the "Tiny Terrains 12cV3" rear axle OR a stock width TRX4M rear axle with upgraded internals. The hex width will be the same as the IFS and no spacers or modification will be needed.
-Suspension; I highly recommend oil filled shocks, otherwise it will be quite bouncy. The ones made for the AX24 are around 50-55mm eye to eye and are perfect for both the IFS, I-Beams, and rear trailing arms.

Disclaimers
-This kit REQUIRES ASSEMBLY. A high level of experience with the SCX24 platform is recommended for assembly. I am not responsible for broken parts due to improper installation. A detailed assembly video will be posted soon.
-Many SCX24 and AX24 parts are not meant for faster builds, you may experience increased wear and tear on parts.
-Aside from the chassis rails and hardware, this kit is fully 3d printed. It will warp if left exposed to heat or sunlight, it is more brittle than molded plastic, and it may have visual imperfections and layer lines.
-I am very pleased with the durability of it, but if anything from this kit breaks please reach out to me with pictures and a description of what happened, so that we can find a solution and I can continue to improve my products. I love driving my RCs and hate when they are broken, so I am always ready to help get your rigs back on the dirt if anything does happen!
-Just like plastic parts on a regular RC car, the printed parts on this kit will wear out over time. I have adjusted tolerances for each and every part to ensure the best fit, so some hardware may seem a little snug at first. It will break in during the first couple drives, ensuring the ideal fit and the least amount of play in your suspension.

WARNING: CHOKING HAZARD – Small parts. Not for children under 3 yrs.
